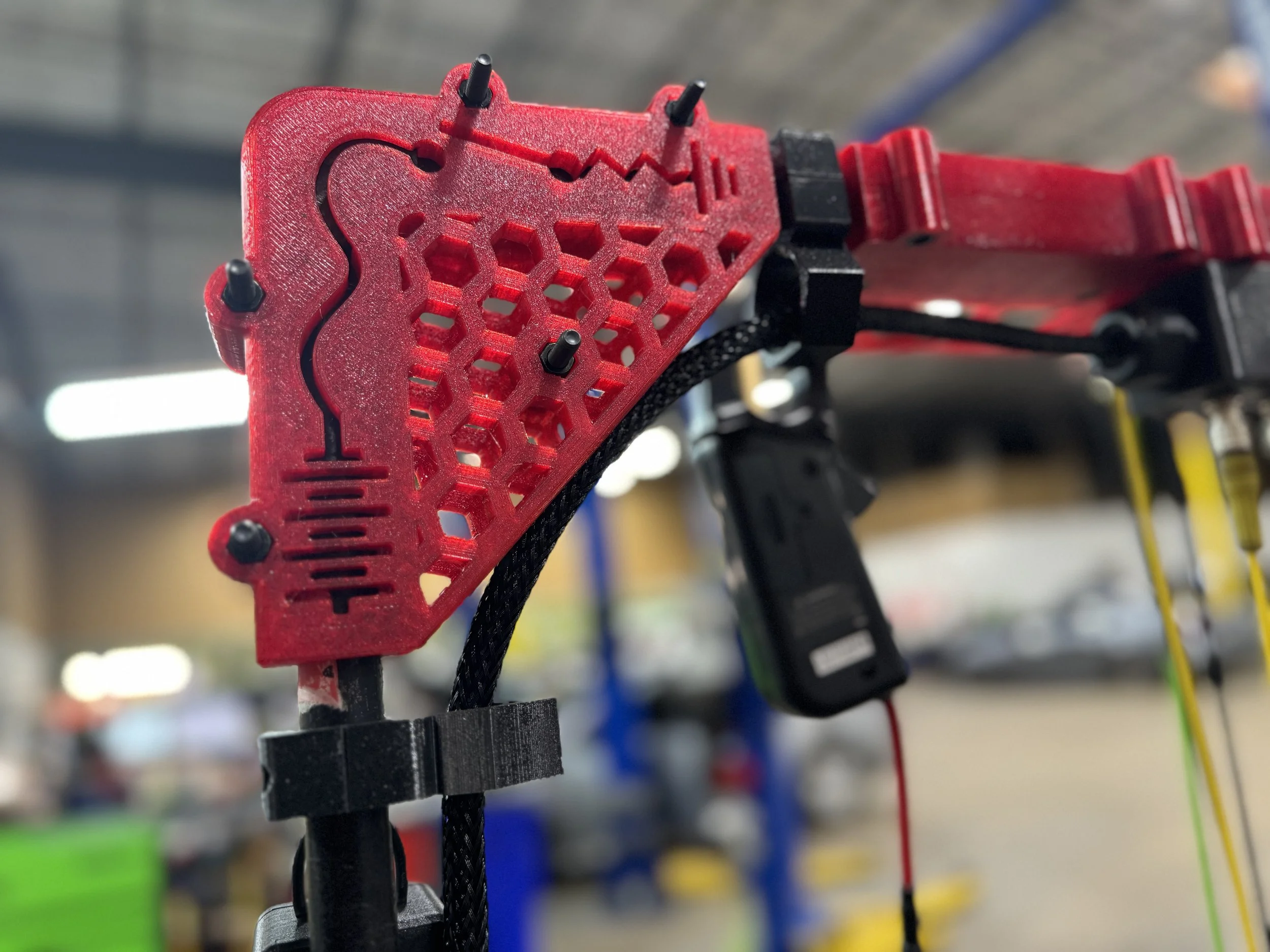

One of the best decisions I ever made in my diagnostic process was honestly staying organized, most importantly with my scope leads. Having your leads out of the drawer and hanging leads to quicker acquisition times and keeping scope leads tangle free. Because of this I created the first 3D printed diagnostic cart boom kit. This universal boom kit includes a mount to hold 21.5mm pipe, a memory lock, and decorative back plate that acts as a template to drill the holes. For the lead holder it comes in 4 seperate sections that clamp to the pipe. On one side are slots to hold leads and the other end you can hang an amp clamps or anything else you can think of. The bottom side of the lead portion has two cut outs so if you decide to upgrade to the added BNC box. you can without any additional parts.
Includes:
Lead Holder
Amp Clamp Holder
Mount size of your choice (see additional info)
End Clamp
Nuts and Bolts
Memory Lock
Corner Trim Module
*If you want to mount your picoscope or autel ultra scope to the boom mount please check out the mount upgrade. This will allow you to magnetically attach a Picoscope (with one of my pico 4425/4425A cases or a Autel Ultra VCMI Clasp.
*Don't forget to add the BNC box if you want!
One of the best decisions I ever made in my diagnostic process was honestly staying organized, most importantly with my scope leads. Having your leads out of the drawer and hanging leads to quicker acquisition times and keeping scope leads tangle free. Because of this I created the first 3D printed diagnostic cart boom kit. This universal boom kit includes a mount to hold 21.5mm pipe, a memory lock, and decorative back plate that acts as a template to drill the holes. For the lead holder it comes in 4 seperate sections that clamp to the pipe. On one side are slots to hold leads and the other end you can hang an amp clamps or anything else you can think of. The bottom side of the lead portion has two cut outs so if you decide to upgrade to the added BNC box. you can without any additional parts.
Includes:
Lead Holder
Amp Clamp Holder
Mount size of your choice (see additional info)
End Clamp
Nuts and Bolts
Memory Lock
Corner Trim Module
*If you want to mount your picoscope or autel ultra scope to the boom mount please check out the mount upgrade. This will allow you to magnetically attach a Picoscope (with one of my pico 4425/4425A cases or a Autel Ultra VCMI Clasp.
*Don't forget to add the BNC box if you want!
Mount sizing
Large standard mount is 150x150mm and the small mount is 100x60mm
Please double and triple check measurements with me if you are unsure!
